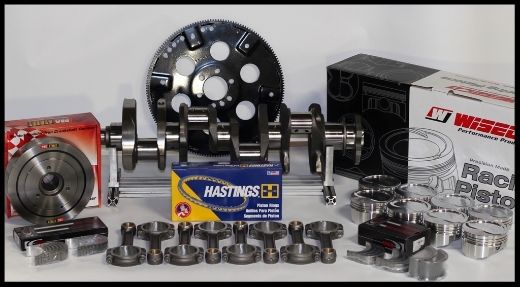

SBF FORD 434 ROTATING ASSEMBLY SCAT 4340 CRANK & RODS -12cc DISH 4.155 BORE

Available

$1,949.00



Product Information

UPC351596047616
Product TypeShipped Product
Shipping Cost $89.50
Number of reviews 0
SFI Billet Steel flywheel upgrade/option for manual transmission. Upgrade to a PRW brand billet steel flywheel SFI rated 157 tooth flywheel for manual transmissions. We highly recommend the SFI billet steel flywheel for those running hard. These are fully cnc'd and far superior in many ways compared to the regular cast iron flywheel.

 photo 2b51463a-12d1-41c4-91aa-668dce226a17.jpg

SFI damper: Offers an extreme level of safety against breakage, and is very resistant against slippage of the elastomer damping material. SFI dampers are not only made from a better grade of steel, they are also constructed differently and have a much better appearance. They usually last much longer than a non-SFI damper. Many drag strips require this on engines producing high horse power levels. The SFI certification is laser etched into the side. Damper failure rates are much higher on engines using a non-sfi damper coupled with hp ratings exceeding 450 and turn 5600 rpm or higher. We strongly recommend this upgrade for those running hard.

Cost of the SFI damper upgrade is $69.50 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart. Click here to add upgrades.

 photo ProSport_SBChev-2_1.jpg

Crank polishing: Extends bearing life, reduces oil temp, frees up a slight amount of average horsepower. This is a very low cost upgrade, and in the world of mass production, most cranks do not come with a true polished finish. This is why most machine shops have a machine to do this. The difference is dramatic between a crank right out of the box and one that we have polished. Bearing companies claim that cranks that have better finishes on the journals will survive the break-in better, and have much longer bearing life. We do a two-step process and bring the RA numbers down in the single digit range. We have the most advanced crank polishing machine on the market.

Cost for the crank polishing upgrade is $38.50 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

 photo CRANK20POLISHER.jpg Photobucket

Clevite Bearings: We find the Clevite bearings to be a somewhat better product overall. Clevite is what we now use in all of our engines. This is not to say that King bearings are faulty in any way, but under certain conditions, we have seen fewer problems develop with Clevite bearings during break-in. We have sold King bearings for many years and do not hear of problems from our customers, but our experience on the dyno has shown the Clevite bearings have a better surface appearance upon tear-down after many dyno passes. This is due to the fact that Clevite H/HN series bearings use a slightly harder aluminum alloy.

Upgrade to Clevite "H/HN" Series - FORGED bearings is $35.00 (Use only on 4340 forged crank.)

We have these Clevite bearing upgrades featured in our other listings. You can see these and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

 photo unnamed1.jpg

Rod to cam clearance and sizing: We know exactly where and how much to cut the rods on our vertical milling machine for correct cam clearance, and sizing the big end and wrist pin bushing on the Sunnen machine saves a trip to the machine shop. All rods, regardless of brand, should be checked for sizing on a Sunnen machine, and corrected if needed. You will seldom see a complete set of rods that have perfect sizing on both ends right out of the box.

The clearancing we will do assumes the use of a reduced base cam. We do not recommend a full base circle cam in this assembly.

Cost of this rod to cam clearancing and sizing upgrade is $68.50 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

 photo ROD20MACHINE202.jpg

 photo ROD20MACHINE201.jpg

 photo ROD20MACHINE203.jpg

We do the rod to cam clearancing on a vertical milling machine as pictured below as part of this upgrade. By doing this procedure on a milling machine the rods are cut precisely at the correct angle to clear the cam. This also keeps the amount removed identical on each rod. It would be very difficult to do this by hand on a grinder as is commonly done. After we clearance the rods on the milling machine we go over them on a wire brush machine to clean up the edges, and remove any stress risers. This is a very critical procedure. Those who lack the experience and choose to do this on their own risk destroying the rod and or the bolt, or at least removing too much material and weakening the rod and or bolt.

 photo 3782393e-6cb2-413a-a613-f4c1a16ffd6d.jpg  photo fdd9f445-912c-4e22-bc0a-0e59da6f36c9.jpg

Race balancing: This is for those who want the engine to operate virtually vibration free at high rpm. Extends engine life and frees up a few more horse power. This is a somewhat labor intensive procedure and is not required, but the feel of an absolutely vibration free engine at high rpm is desirable by many. The standard balance job that is included with this assembly at no extra charge is certainly sufficient. With a race balance job, all pistons and rods are match weighed to within 2/10's of a gram or less, and the final balance is brought down to around 1 gram plus or minus. An ultra smooth engine at high rpm has a noticeable feel and sound to it. If you do not opt for this upgrade, the assembly will still be fully balanced. We spend a good hour and a half doing the regular balance work, and it will certainly meet your needs.

Cost of this race balancing upgrade is $125.00 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

 photo IMG_0589.jpg

Scat H-Beam Rod Upgrade: Recommended for those running hard. The Scat Competition rods that come with this assembly are sufficient for most street rod uses, but the Scat H-beam rods will most likely offer more security against rod breakage under hard use. The H-beam rods have a 750+ HP rating.

H-Beam rods will require the use of a reduced base circle cam.

Cost of this Scat H-Beam rod upgrade is $90.00 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

Photobucket

ARP-2000 rod bolts: This is one upgrade that we find to be very valuable. The rod bolts are most likely to fail under hard use, moreso than the rod itself. When a rod bolt fails during high RPM, total engine destruction is usually the result. The ARP-2000 rod bolts are a very good upgrade, in our opinion. We actually have few, if any, problems with the regular ARP-8740 bolts, but those who run hard always upgrade to the ARP-2000 rod bolts. The ARP-2000 rod bolts also torque at a higher number, and this increased clamping force is also a factor in keeping the big end of the rod stable and true to size. The ARP-2000 bolts are installed in the rods and this upgrade is only available with the Competition rod upgrade.

Cost of this ARP 2000 rod bolt upgrade is $89.50 We have this upgrade featured in our other listings. You can see this and other upgrade options in our ebay store under the "UPGRADES" category, or simply do a search with the key word, "Upgrade" in the search bar when shopping in our ebay store. Before you finalize your purchase of this assembly you may add any of these upgrades to your shopping cart.

 photo arp-2566301_3530201.jpg

Some of these upgrades are often requested by those building an engine without a machine shop. We find most of these upgrades very valuable for those wanting to take longevity and durability to the next level. They are all bottom end related, and that's an area worth investing a few more dollars into, in our opinion, especially if you're planning on running long and/or hard. These upgrades are also valuable for your build history on your engine, and would certainly increase the resale value of your engine, should you ever sell it. Pricing of upgrades subject to change.

A note from Skip White, company president.

Many people have asked how is it that we can sell this assembly for such a low price. To answer this; we buy our products at master WD (warehouse distributor) level for all of the items in this assembly, and we are selling direct to the public. We are a volume sales based company. Our profit is based on sheer volume, with a very low markup. It is this large volume purchasing that allows us to buy products at a much lower price and we simply pass these savings on to our customers. This is our main competitive edge.

Skip White

 photo THEWINNERRADISH.jpg


A final note.

Our user id is: skipwhite, and our store name is whiteperformance1. You may have noticed other sellers using a similar name offering similar products. These other sellers have capitalized on our name as we see it, and many customers searching for us will inadvertently find them, thinking we are one in the same company. There is only one "Skip White." We are the original premier seller under this name since approximately 2003. We have no other names, nor are we associated with any other company regardless of the similarity in the name or location. Our official company name is Skip White Performance. Please see the article below for a more detailed explanation.

The real story...Skip White Performance vs. White Performance & Machine

I'm sure many of you have noticed there are 2 high performance engine builders in Kingsport, TN with similar names, and this has led to a great amount of confusion.

We are Skip White Performance, NOT White Performance and Machine. Many customers looking for us online inadvertently find them, thinking we are the same company. Definitely not...there is no connection between the two companies. We don't have a problem with free enterprise (competition). However, when the competition builds their foundation on such things as a name similarity and their supposedly long history of being in business, then we think it's about time we set the record straight.

We have owned White Performance since 2003, with the exception of the machine shop, which was owned by Fred White at the time. He continued to operate the machine shop and build engines for us while we continued selling online under the user ID of skipwhite and the store name of whiteperformance1.

Due to their limited production capability and many disagreements about the engine building process and workmanship, we opted to open a full scale machine shop of our own. Fred White began competing against us even though our contract had a no compete clause in it. Fred White sold his machine shop in 2016.

As our business grew, we opened a second, much larger warehouse around 2011, located on Brookside Ln. in Kingsport. At this point we were well established as the number one street rod engine building in the nation. Due to the name similarity, many people looking for us mistakenly contacted Fred's shop. The problem continues to this day and the new owners of Fred's shop reap the benefits from this confusion between the two shops. Fortunately we stay plenty busy throughout the year, but a new problem has come up. We’re getting calls nearly on a daily basis from people that realize there are two shops in this town with very similar names and complain of serious problems in getting their engine in a timely manner from them. They think they purchased their engine or rotating assembly from us. Due to the confusion, there is an increasing amount of negative talk that is starting to reflect on our reputation within the street rod community, when in fact we have a near perfect reputation in this industry.

All in all, we have been in this business 16 years. By putting heart and soul in this company, we have become the number one street rod engine builder in the country. Skip White's passion has been owning and building street rods for 47 years on a personal level. The knowledge he has gained over time has allowed him to venture into this business and succeed to a very high level.

Fred White sold the machine shop to an investor in early 2016. This investor lacks any knowledge of this industry. They continue to use the White Performance & Machine name. Fred White is no longer associated with the company in any way. Their main spiel in advertising is, "In business since 1979," when in fact, we purchased the White Performance company in 2003, with the exception of the machine shop. The great pretenders continue capitalizing from our success, but as mentioned, have been degrading our reputation.

FAST FORWARD TO 2019...We have become the largest street rod engine builder and supplier of rotating assemblies in the nation. Our engines, rotating assemblies, and cylinder heads are built to very high standards and shipped to our customers in a timely manner. We are a premier seller on with a positive feedback score of well over 200,000.

Our engines are custom-built to our customers' specifications and are shipped, in general, in 2-5 weeks, perhaps sooner, depending on the season. Our rotating assemblies ship out in about one week, and our heads ship in about a week or less.

Now you know the real story, and we hope this helps with the confusion.
